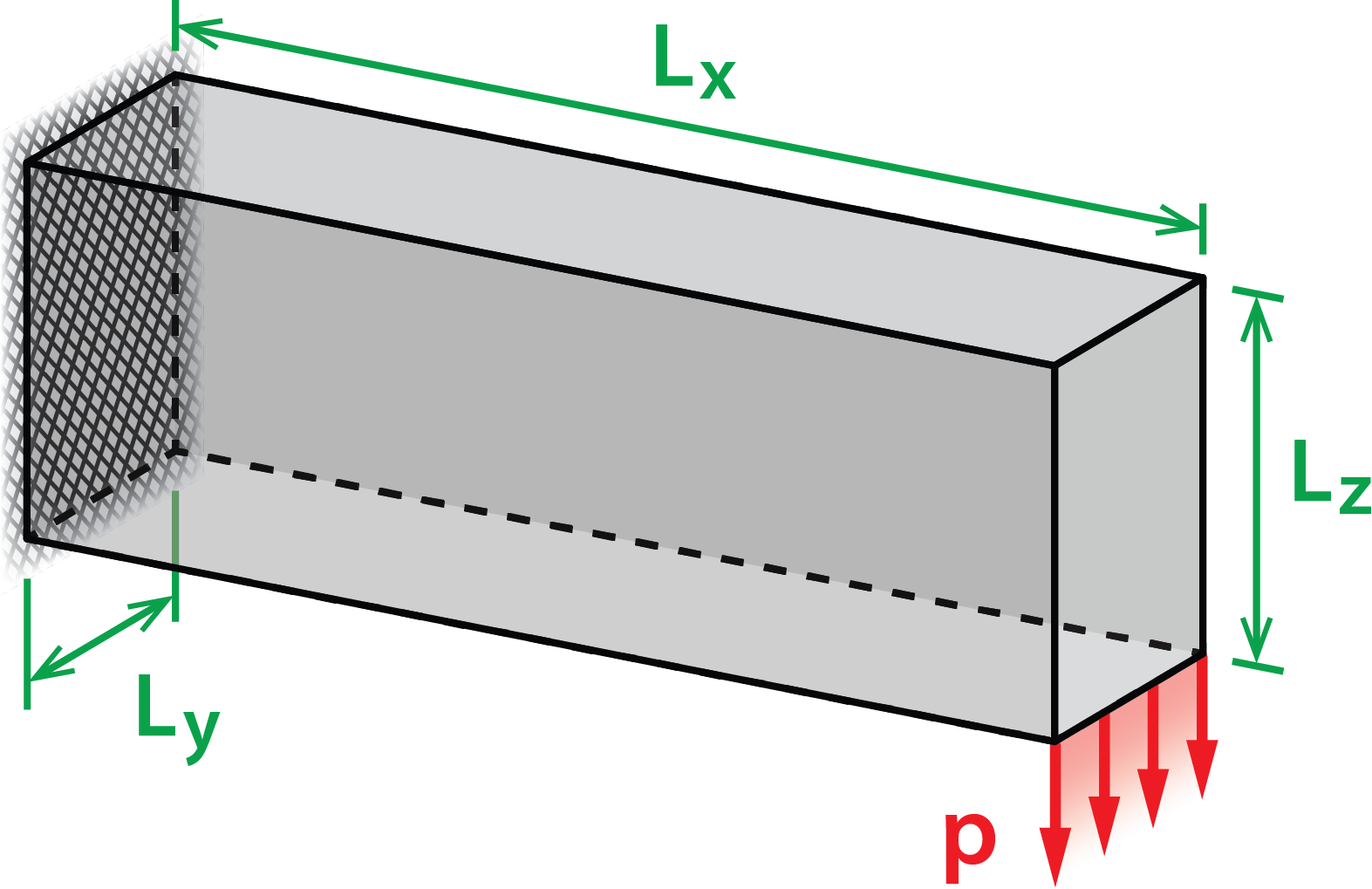

Rectangular cantilever domain clamped at the left side and loaded at the right by a distributed force applied at the lower edge.
"Bridging topology optimization and additive manufacturing." T. Zegard and G. H. Paulino. Journal of Structural and Multidisciplinary Optimization 53(1), 2016.
