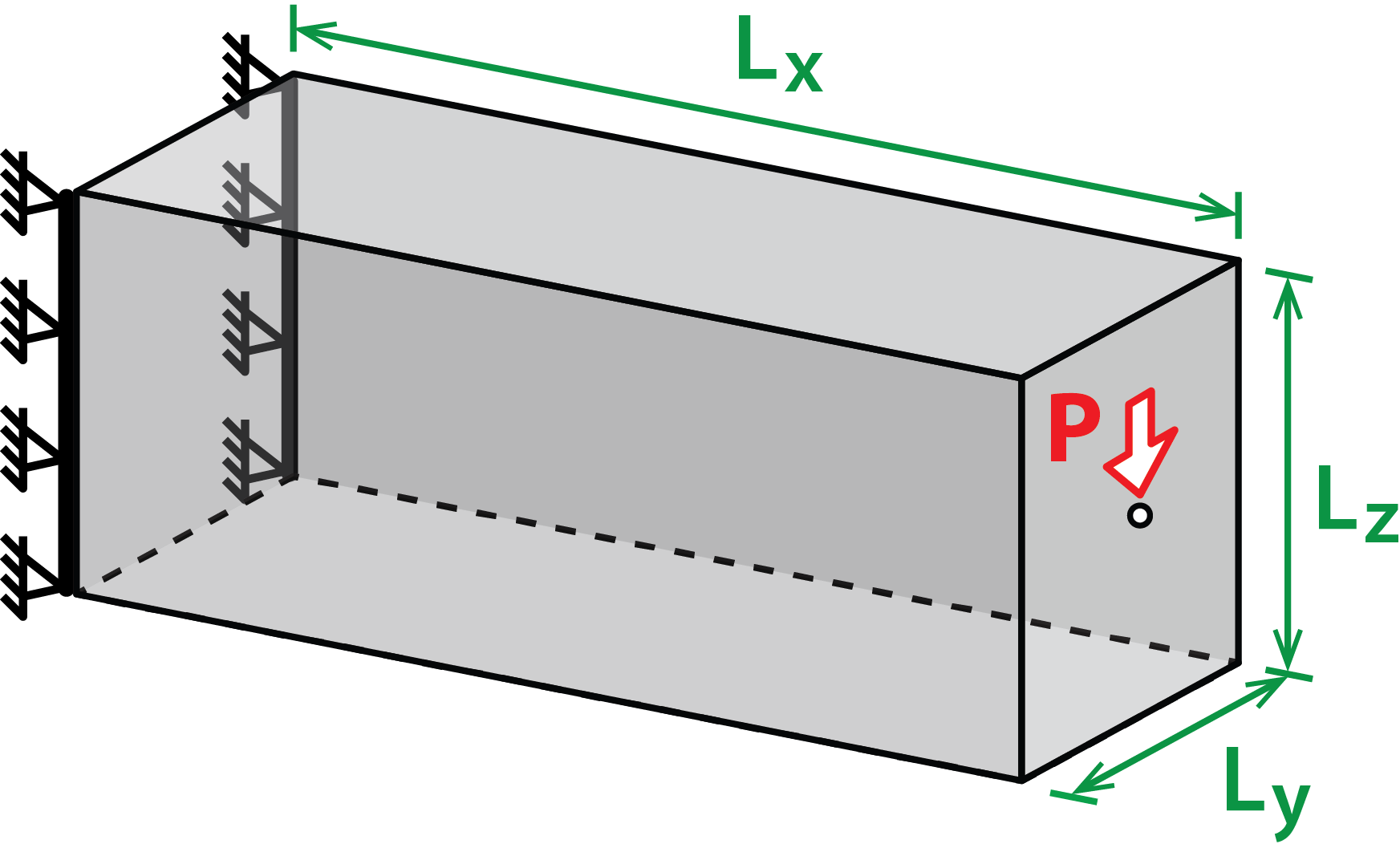

Rectangular cantilever domain suported along two vertical edges and loaded at the center of the facet opposite to the supports.
"Bridging topology optimization and additive manufacturing." T. Zegard and G. H. Paulino. Journal of Structural and Multidisciplinary Optimization 53(1), 2016.
