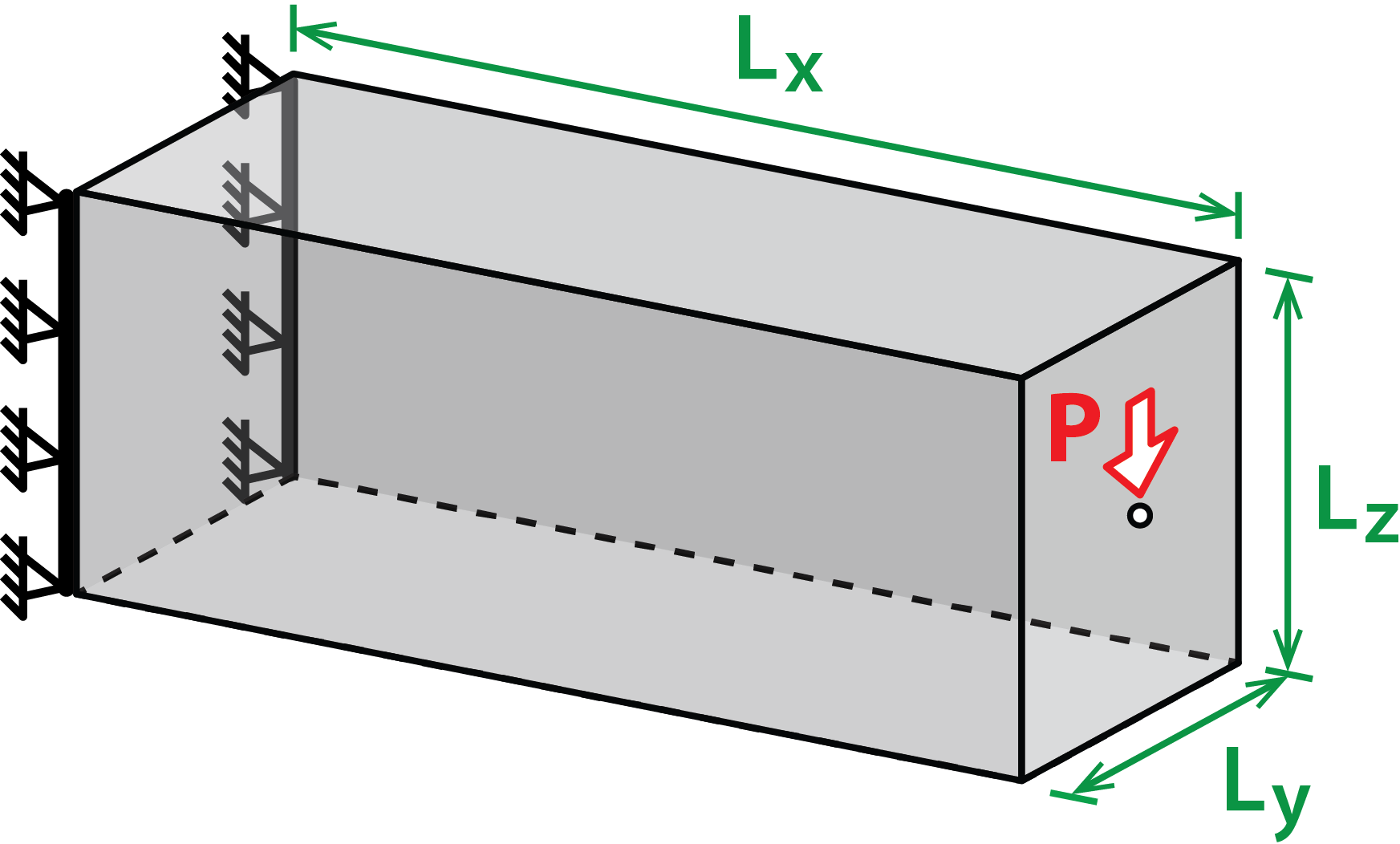

Rectangular cantilever domain suported along two vertical edges and loaded at the center of the facet opposite to the supports.
"GRAND3 — Ground structure based topology optimization for arbitrary 3D domains using MATLAB." T. Zegard and G. H. Paulino. Journal of Structural and Multidisciplinary Optimization 52(6), 2015.
